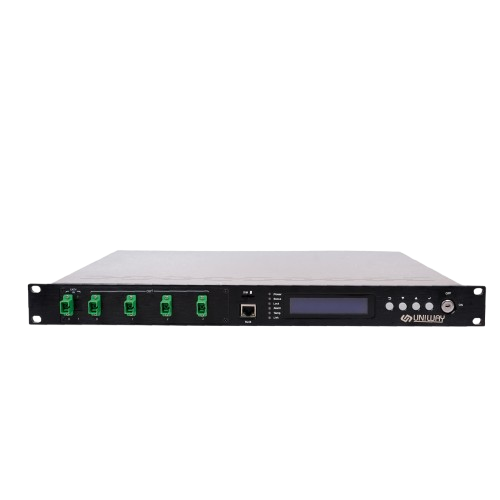

EDFA

An Erbium-Doped Fiber Amplifier (EDFA) is an optical amplifier used to boost the strength of light signals in fiber optic communication systems. It works by doping a fiber with erbium ions, which amplify incoming light when excited by a pump laser. EDFAs are widely used in long-distance and high-capacity networks due to their high gain, low noise, and compatibility with the 1550 nm wavelength range.

An Erbium-Doped Fiber Amplifier (EDFA) is a key component in modern optical communication networks, used to boost the strength of optical signals without converting them back into electrical signals. It relies on a special optical fiber doped with the rare-earth element erbium. When this fiber is pumped with a laser (typically at 980 nm or 1480 nm), it amplifies the light signals traveling through it in the 1550 nm region, which is the optimal window for low-loss transmission in optical fibers.

EDFAs are especially vital in Wavelength Division Multiplexing (WDM) systems, where multiple wavelengths (or channels) are transmitted simultaneously over a single optical fiber. Because all channels are amplified together without signal conversion, EDFAs help maintain signal integrity over long distances, reduce system costs, and support high-capacity data transmission. Their low noise figure and flat gain profile make them ideal for dense and coherent optical systems.

There are various types of EDFAs based on output power, number of output ports, and application needs. These variants are typically defined by their port count and output power per port, e.g., 4 × 16 means 4 output ports each delivering 16 dBm of optical power. Some common EDFA variants include:

  • 4 × 16 dBm – Medium-power amplifier for small multi-channel WDM networks.

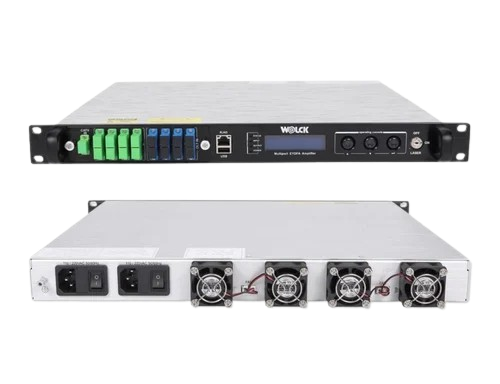

  • 8 × 23 dBm – High-power booster EDFA for large DWDM systems with many channels.

  • 1 × 23 dBm – Single-port high-output amplifier for point-to-point long-haul links.

  • 16 × 19 dBm – Moderate power EDFA with high port count for metro or access networks.

  • 4 × 23 dBm – Compact high-power unit used in backbone or distribution layers.

  • 32 × 19 dBm / 32 × 23 dBm – Very high-density amplifiers for massive multi-channel systems.

  • 2 × 19 dBm / 8 × 19 dBm / 16 × 23 dBm – Versatile options for various power and capacity needs.

These configurations allow network designers to select the most suitable amplifier based on the required reach, signal strength, and the number of wavelengths or fibers being amplified.

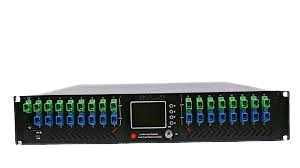

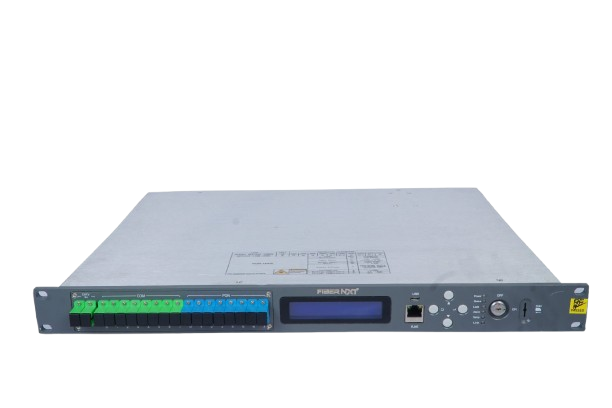

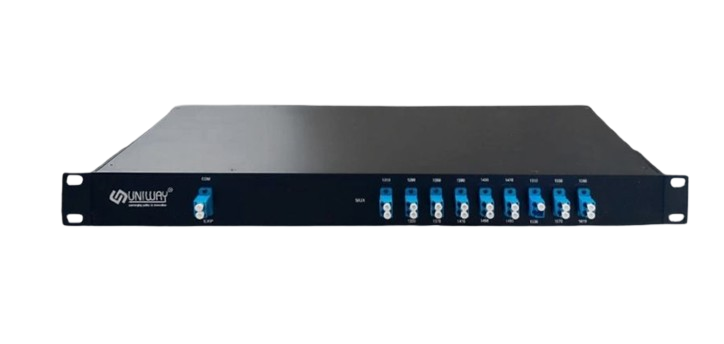

An EDFA WDM (Erbium-Doped Fiber Amplifier for Wavelength Division Multiplexing) is a specialized optical amplifier designed to simultaneously amplify multiple wavelengths of light within a single optical fiber. These devices are essential in WDM systems, where multiple data channels are transmitted over different wavelengths. By using erbium-doped fibers and pump lasers, EDFA WDM units boost signal power efficiently across all wavelengths in the 1550 nm window, ensuring minimal signal loss and consistent transmission quality over long distances.

WDM EDFAs are engineered to provide uniform gain across all channels, making them ideal for dense WDM (DWDM) applications. They eliminate the need for optical-to-electrical conversion, reducing latency and system complexity. Depending on the design, WDM EDFAs can act as booster amplifiers (installed near the transmitter), in-line amplifiers (along the transmission path), or pre-amplifiers (near the receiver). Their high performance, reliability, and scalability make them a backbone component in metro, long-haul, and ultra-long-haul optical networks.

WDM EDFAs come in multiple port and power configurations to support different network sizes and performance requirements. The configuration is typically noted as “ports × output power (dBm)”. Here are some commonly available variants:

  • 4 × 16 dBm – Compact amplifier for smaller systems or shorter transmission links.

  • 16 × 19 dBm – Mid-range amplifier for metro and regional WDM networks.

  • 4 × 19 dBm – Low-to-mid power option for distributed or access layer systems.

  • 16 × 23 dBm – High-power amplifier suitable for long-haul DWDM links.

  • 4 × 23 dBm – High-output compact amplifier used in transmission backbones.

  • 32 × 19 dBm – High-density mid-power EDFA for large-scale network deployments.

  • 8 × 23 dBm – High-power amplifier for medium-sized WDM networks.

  • 32 × 23 dBm – Very high-density, high-power amplifier for backbone and data center interconnects.

  • 64 × 19 dBm – Ultra-high-density amplifier designed for hyperscale WDM systems and large data center infrastructure.

These EDFA WDM variants allow network operators to select the most appropriate solution based on power requirements, number of channels, and overall network architecture. This flexibility ensures efficient signal amplification across a wide range of optical communication applications.
