Explore Our Range of products in Two way Radios
Cleavers
A fiber cleaver is a precision tool used in fiber optic installations to cut optical fibers cleanly and accurately before splicing. It ensures a smooth, flat end face on the fiber, which is critical for low-loss connections during fusion splicing or connectorization. High-quality cleaves are essential for maintaining signal integrity in fiber optic networks.

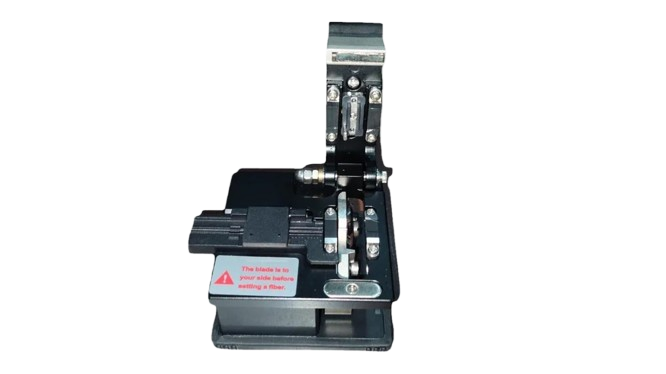

Fiber Cleaver UW-08
UW-08 is a rugged, single-step fiber cleaver designed for fast, accurate cutting of silica fibers (125 µm cladding with 160–900 µm coating). It delivers typical cleave angles of ~0.5°, ensuring clean end faces and reliable splicing performance. With an easy one-lever operation, tool-free blade rotation, and a long-lasting blade capable of up to 48,000 cleaves, it’s ideal for field and lab use

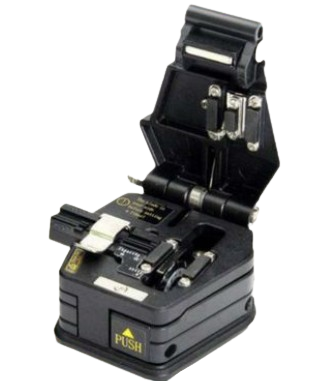

Fiber Cleaver T-905
The T‑905 is a compact, economic multi-action fiber cleaver from Skycom (Nanjing), weighing around 0.3 kg and measuring approximately 60 × 60 × 55 mm. It handles bare silica fibers (125 µm) with coatings up to 1,000 µm, delivering ultra-clean 90° ± 0.5° cleaves. Featuring a long-lasting blade rated for about 36,000 cleaves, it’s ideal for reliable field or workshop use
Fiber Cleaver UW-70C
The UW‑70C is a portable, lightweight handheld fiber cleaver designed primarily for field or FTTx use. Uses rotary, replaceable tungsten-steel blade with multiple scoring positions, enabling a blade life of approximately 36,000 – 48,000 cleaves and a typical cleave angle of around 0.5°.ompatible with standard 125 µm bare fiber and fiber coatings ranging roughly from 0.25 mm to 0.9 mm, producing cleave lengths between ~9–20 mm depending on coating thickness
